LED high bay lights from Alton Ray light factories, warehouses, workshops, logistics halls and sports halls with mounting heights of roughly 6–12 m. The Sabalan series delivers up to 23,000 lm at 120 lm/W with OSRAM LEDs and IP65 options; the Karen linear range adds IP65 fittings for lower ceilings, aisles and car parks. All fittings accept 110–250 V AC.

Industrial range

Series / model	Power	Flux	Protection	Use

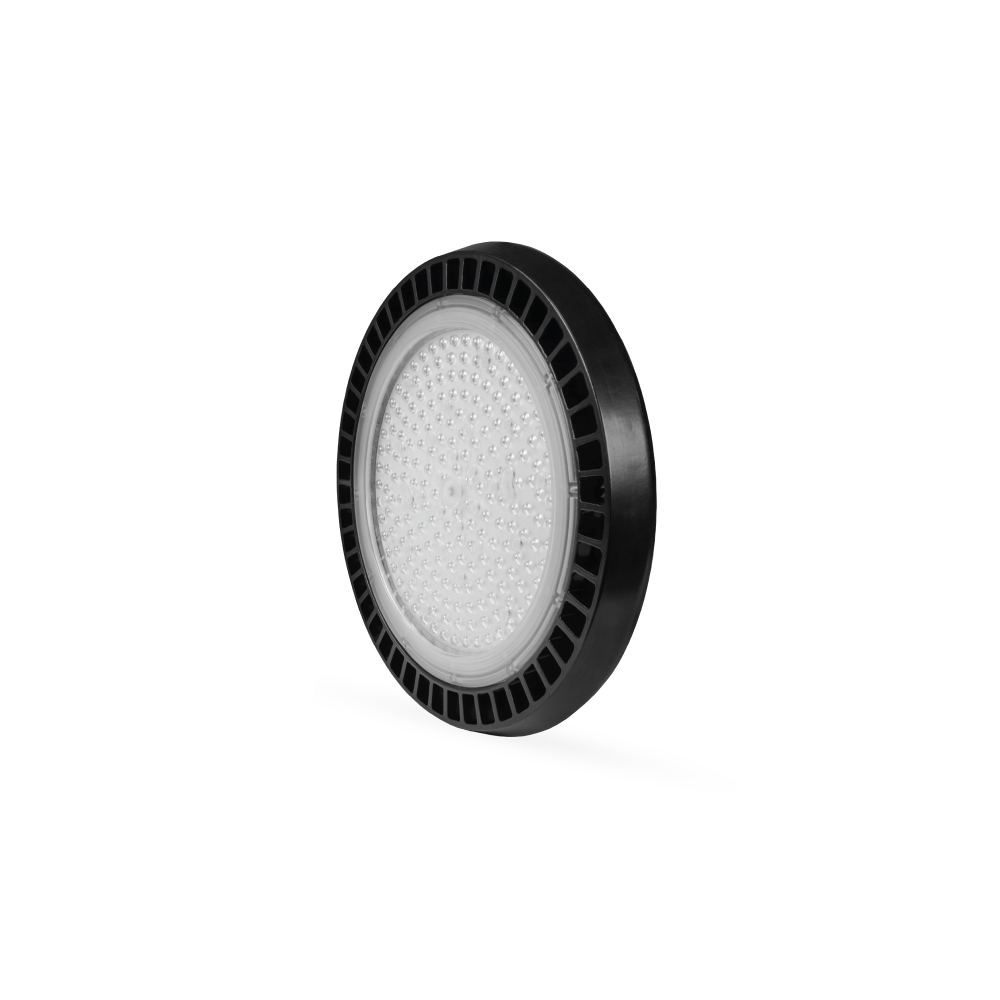

Sabalan WS11 / WS13	190 W	23,000 lm	IP65 (WS11) / IP52 (WS13)	High warehouses, factories, sports halls
Sabalan WS14 / WS12	150 W	18,000 lm	IP65 (WS14) / IP52 (WS12)	Workshops, logistics, retail warehouses
Karen KA01 / KA11 / KA12	24 / 48 / 52 W	2,400 / 4,800 / 5,200 lm	IP65	Aisles, low-bay areas, car parks; KA12 with microwave sensor
Dino WB21	24 W	2,400 lm	IP54	Utility rooms, workshops

Choosing a high bay

Mounting height: 150 W for about 6–8 m, 190 W for about 8–12 m (final count from a lighting calculation).
Environment: dusty, humid or wash-down areas need IP65 (WS11, WS14, Karen).
Beam: Sabalan uses a 90° beam for high ceilings; Karen spreads 140° for low ceilings and aisles.
Controls: motion-sensor Karen KA12 cuts energy in low-traffic aisles.
Grid: 110–250 V AC input for unstable supplies.

For contractors and importers

Factory pricing for projects and distributors, 5-year warranty on Sabalan, technical datasheets and export to Turkey, Pakistan, the Caucasus and the Gulf. For outdoor yards see LED floodlights; for IP/IK guidance read IP and IK ratings for industrial lighting. Request a quote.

FAQ

What is a high bay light?

A luminaire for ceilings roughly 6 m and higher, with high output and a controlled beam to light the floor of factories and warehouses.

Which wattage do I need for a 10 m warehouse?

Usually around 190 W per fitting, with spacing set by a lighting calculation. Send your layout and target lux.

Are your high bays IP65?

Sabalan WS11 and WS14 are IP65; WS12 and WS13 are IP52.

What is the warranty?

5 years on Sabalan high bays, 3 years on Karen and Dino.
